Machine Vision System
A Machine Vision System (MVS) is a technology that uses computer vision and imaging systems to automate the inspection, measurement, and analysis of objects or scenes in various industrial and commercial applications. It involves the use of cameras, image processing software, and often additional hardware components to capture, process, and interpret visual information. Machine Vision Systems are used for a wide range of tasks, from quality control and defect detection to robotics and automation. Here are the key components and applications of Machine Vision Systems:

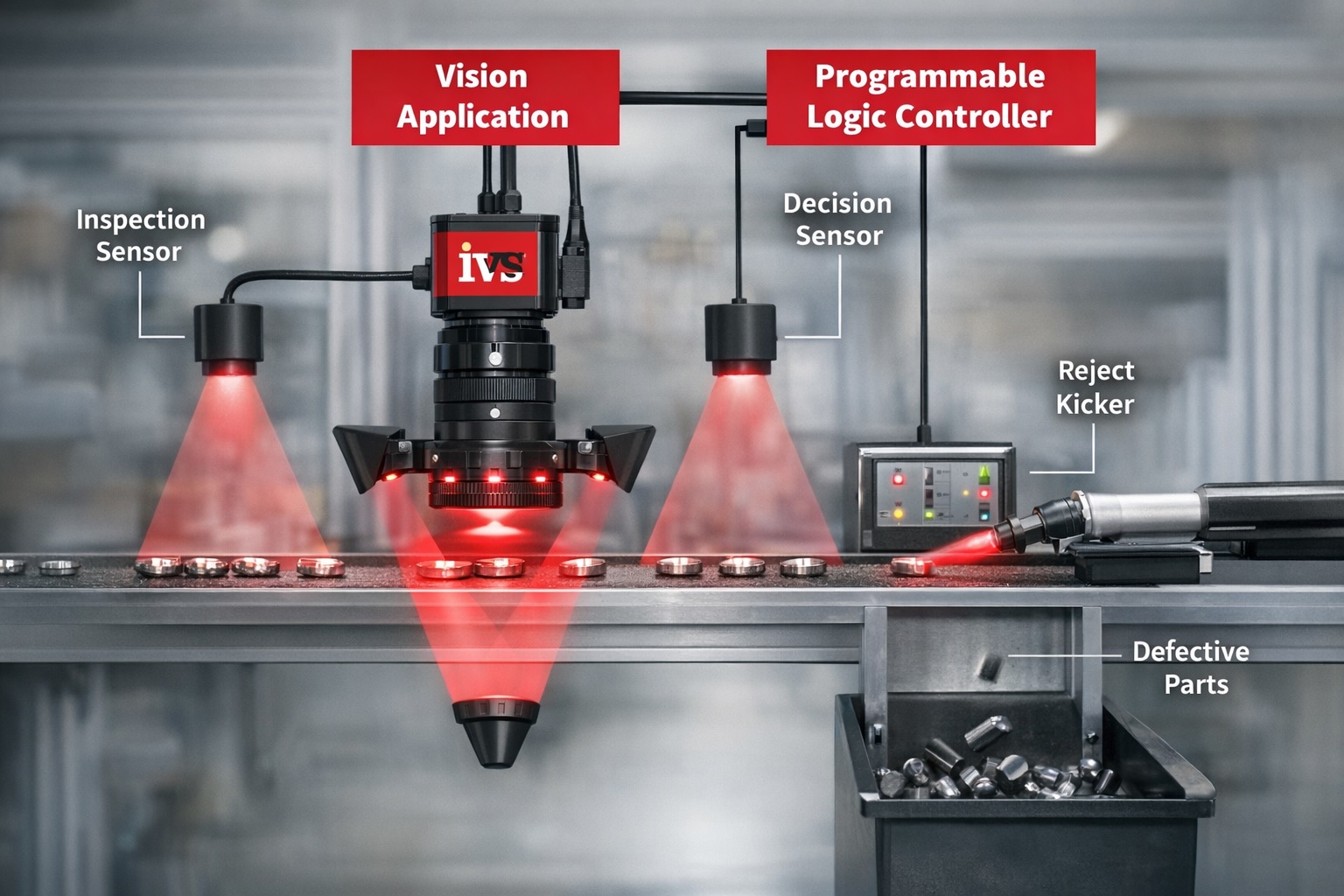

Key Components of a Machine Vision System:
1. Camera(s): Cameras are the primary input devices in a machine vision system. They capture images or videos of objects or scenes to be analyzed. Various types of cameras, such as digital cameras, industrial cameras, or specialized vision cameras, can be used depending on the application.
2. Illumination: Proper lighting is essential to ensure consistent and high-quality image capture. Different lighting techniques, such as bright field, dark field, or backlighting, are used to highlight specific features or defects in objects.
3. Image Processing Software: Image processing software is the core of the system. It performs tasks such as image enhancement, segmentation, pattern recognition, and measurement. Advanced algorithms are used to process images and extract meaningful information.
4. Processor/Computer: A computer or dedicated processing hardware is required to run the image processing software and execute algorithms for analyzing images and making decisions.
5. Communication Interface: Machine Vision Systems often have interfaces for communication with other systems, such as programmable logic controllers (PLCs) or robotic systems, to enable automated decision-making and control.
Applications of Machine Vision Systems:
1. Quality Control and Inspection: MVS is widely used in manufacturing industries to inspect products for defects, ensuring that they meet quality standards. It can detect surface flaws, measure dimensions, and verify the correct assembly of components.
2. Robotics and Automation: Machine vision is used in robotic systems for tasks like pick-and-place operations, assembly, and navigation. Robots equipped with vision systems can adapt to changing environments and make decisions based on visual input.
3. Barcode and OCR (Optical Character Recognition): Machine vision can read barcodes, QR codes, and text, making it useful in logistics, inventory management, and document processing.
4. Medical Imaging: MVS is applied in medical diagnostics for tasks such as identifying tumors in medical images, monitoring patient conditions, and assisting in surgery.
5. Traffic Monitoring and Surveillance: Machine vision is used in traffic management systems to monitor and control traffic flow, detect violations, and enhance safety.
6. Agriculture: In agriculture, MVS can be used for tasks like fruit sorting, crop monitoring, and automated harvesting.
7. Pharmaceuticals and Packaging: It is used for quality control in pharmaceutical manufacturing and to ensure the correct packaging of products.
8. Security and Surveillance: Machine vision can be employed in security systems for facial recognition, object tracking, and anomaly detection.
9. Food and Beverage Industry: In food production, MVS is used to inspect food items for quality, sort products, and ensure packaging integrity.
10. Electronics Industry: It is used for PCB inspection, solder joint inspection, and electronic component assembly verification.
Machine Vision Systems have a wide range of applications and are continuously evolving with advancements in imaging technology and artificial intelligence. They play a crucial role in improving efficiency, accuracy, and quality in various industries.
